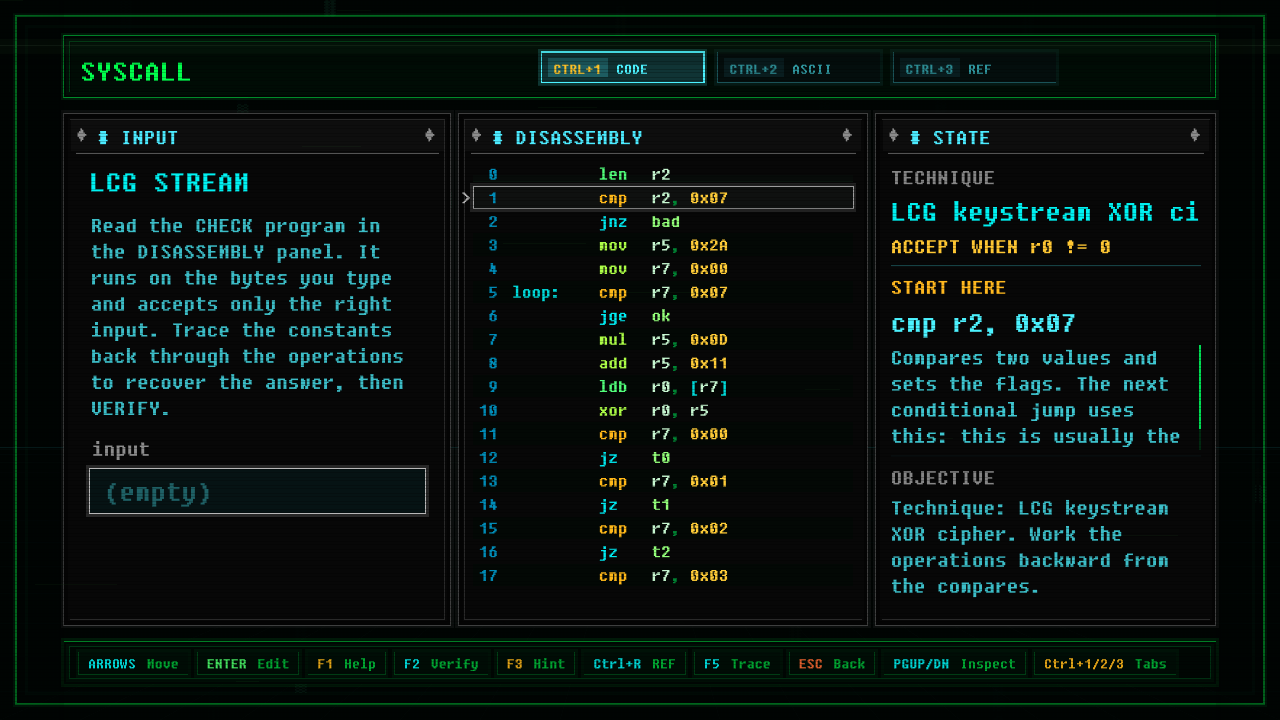

LCG Stream

; z5_lcg_stream: LCG keystream XOR cipher. A linear congruential generator
; produces a fresh key byte before every character check: it advances
;   key = (13 * key + 17) mod 256
; from a seed of 0x2A, then XORs the input byte with that key and compares to a
; stored target. Length must be 7. The first seven advanced keys are
;   0x33 0xA8 0x99 0xD6 0xEF 0x34 0xB5
; and XORing them against the targets recovers LCGKEY1. r0 = 1 on accept;
; rule: nonzero.
;
; Maps cleanly to the 8-bit core: the LCG was a mod-256 byte recurrence already,
; and `mul`/`add` wrap mod 256 natively (13*key keeps the low byte, exactly the
; original update). Targets 0x7F 0xEB 0xDE 0x9D 0xAA 0x6D 0x84 of "LCGKEY1".

        len   r2
        cmp   r2, 7
        jnz   bad

        mov   r5, 0x2A      ; r5 = LCG key, seeded
        mov   r7, 0
loop:   cmp   r7, 7
        jge   ok

        ; advance the LCG: key = (13 * key + 17) & 0xFF
        mul   r5, 13
        add   r5, 17

        ldb   r0, [r7]
        xor   r0, r5        ; XOR input with the current keystream byte

        cmp   r7, 0
        jz    t0
        cmp   r7, 1
        jz    t1
        cmp   r7, 2
        jz    t2
        cmp   r7, 3
        jz    t3
        cmp   r7, 4
        jz    t4
        cmp   r7, 5
        jz    t5
        mov   r1, 0x84      ; position 6
        jmp   chk
t0:     mov   r1, 0x7F
        jmp   chk
t1:     mov   r1, 0xEB
        jmp   chk
t2:     mov   r1, 0xDE
        jmp   chk
t3:     mov   r1, 0x9D
        jmp   chk
t4:     mov   r1, 0xAA
        jmp   chk
t5:     mov   r1, 0x6D
chk:    cmp   r0, r1
        jnz   bad
        inc   r7
        jmp   loop

ok:     mov   r0, 1
        ret
bad:    mov   r0, 0
        ret
