SCOPE Solution

BACKBEAT

SCOPE ACT 2

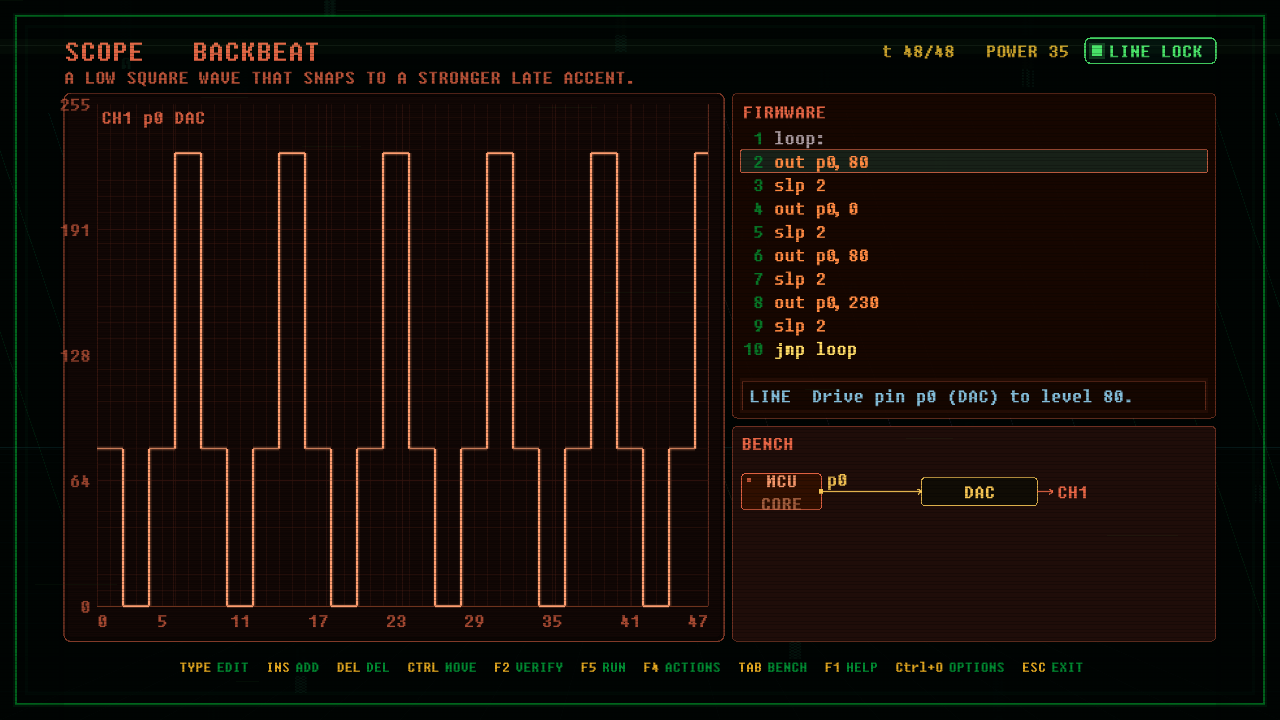

In-game screenshot of BACKBEAT
In-game view
FamilySCOPE Graph0.262 Difficulty0.262 Ring02 IDsc_a2_05_backbeat

Prerequisites

Single Key

Unlocks

Downhill

Reference firmware sc_a2_05_backbeat locked
Par power35 Par lines10 Par chips1

Objective

A low square wave that snaps to a stronger late accent.

Board Data

  • Window: 48
  • Pins: p0 OUT
  • Channels: p0 ANALOG label=CH1_p0_DAC
  • Peripherals: DAC data=p0 label=DAC_p0
Firmware Solution
loop:
      out  p0, 80
      slp  2
      out  p0, 0
      slp  2
      out  p0, 80
      slp  2
      out  p0, 230
      slp  2
      jmp  loop
Board Definition
# BACKBEAT. ACT 2. SCOPE waveform board.
# TITLE BACKBEAT
# OBJECTIVE A low square wave that snaps to a stronger late accent.
ID sc_a2_05_backbeat
WINDOW 48
DIR p0 OUT
PERIPH DAC data=p0 label=DAC_p0
CHAN p0 ANALOG label=CH1_p0_DAC
PAR power=35 lines=10 chips=1
