SCOPE Solution

DOTTED RAMP

SCOPE ACT 2

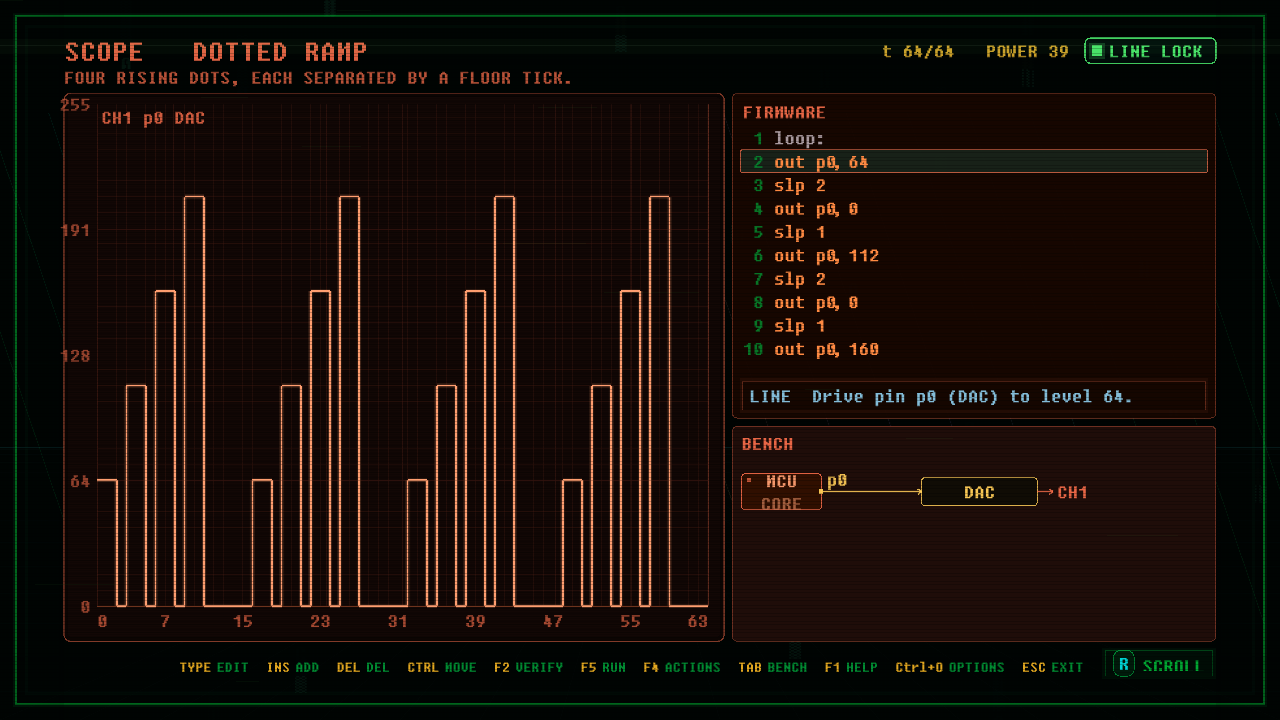

In-game screenshot of DOTTED RAMP
In-game view
FamilySCOPE Graph0.343 Difficulty0.343 Ring02 IDsc_a2_10_dotted_ramp

Prerequisites

PLUS TENAA Scramble

Unlocks

CHASE PAIR

Reference firmware sc_a2_10_dotted_ramp locked
Par power39 Par lines18 Par chips1

Objective

Four rising dots, each separated by a floor tick.

Board Data

  • Window: 64
  • Pins: p0 OUT
  • Channels: p0 ANALOG label=CH1_p0_DAC
  • Peripherals: DAC data=p0 label=DAC_p0
Firmware Solution
loop:
      out  p0, 64
      slp  2
      out  p0, 0
      slp  1
      out  p0, 112
      slp  2
      out  p0, 0
      slp  1
      out  p0, 160
      slp  2
      out  p0, 0
      slp  1
      out  p0, 208
      slp  2
      out  p0, 0
      slp  5
      jmp  loop
Board Definition
# DOTTED RAMP. ACT 2. SCOPE waveform board.
# TITLE DOTTED RAMP
# OBJECTIVE Four rising dots, each separated by a floor tick.
ID sc_a2_10_dotted_ramp
WINDOW 64
DIR p0 OUT
PERIPH DAC data=p0 label=DAC_p0
CHAN p0 ANALOG label=CH1_p0_DAC
PAR power=39 lines=18 chips=1
