WORM Solution

PEAK FILTER

WORM row 8

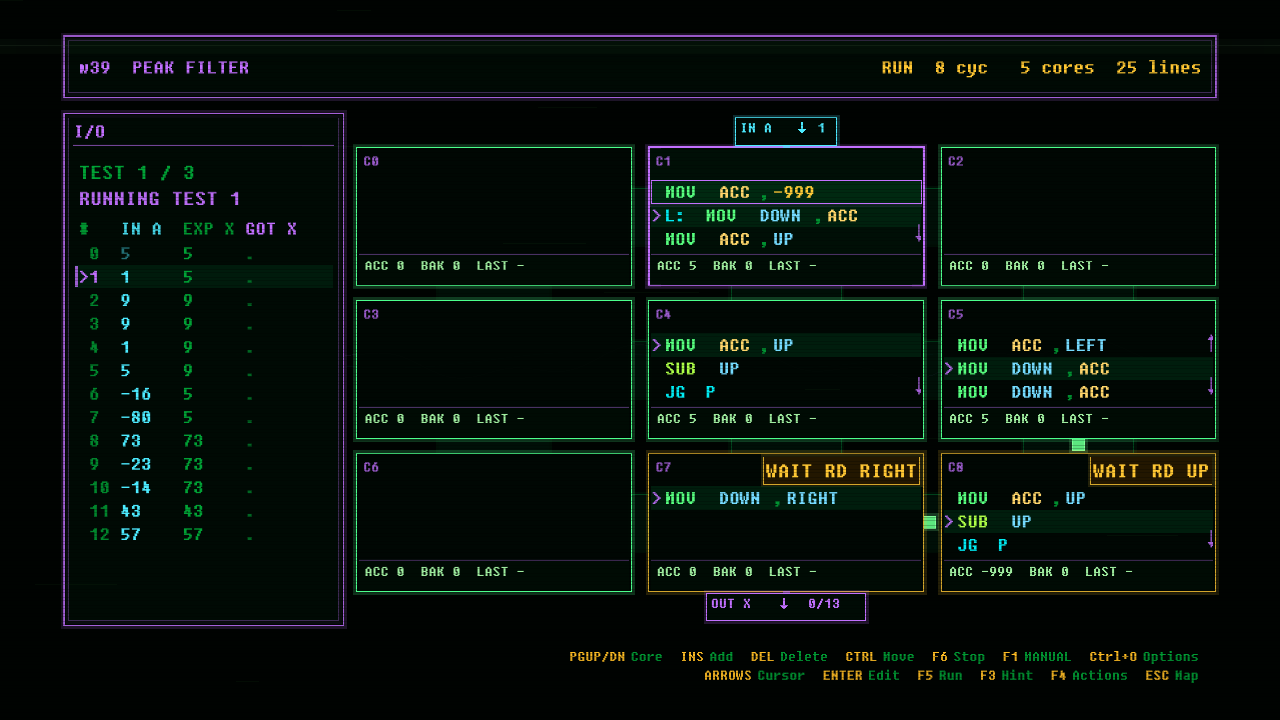

In-game screenshot of PEAK FILTER
In-game view
FamilyWORM Graph0.723 Difficulty0.723 Ring04 IDw39

Prerequisites

VALID SERIAL

Unlocks

Set Bits

Reference rack program w39 solved
Active cores1, 4, 5, 7, 8 Program lines30 DetailWORM row 8

Walkthrough

PEAK FILTER: sliding window of 3, emit window max (13 in -> 13 out).

Two chained window-2 maxes: A[k]=max(in[k-1],in[k]), out[k]=max(A[k-1],A[k]).

Missing samples primed to -999 so the growing-window edges fall out of the

same formula. Each stage = a DELAY core (emits prev,cur,cur) feeding a MAX core

(reads a,b,b -> b+ReLU(a-b)=max). MAX loops via PC-wrap (no JMP). Path 0->4->5->9->8.

Rack Solution
# PEAK FILTER: sliding window of 3, emit window max (13 in -> 13 out).
# Two chained window-2 maxes: A[k]=max(in[k-1],in[k]), out[k]=max(A[k-1],A[k]).
# Missing samples primed to -999 so the growing-window edges fall out of the
# same formula. Each stage = a DELAY core (emits prev,cur,cur) feeding a MAX core
# (reads a,b,b -> b+ReLU(a-b)=max). MAX loops via PC-wrap (no JMP). Path 0->4->5->9->8.
@1
MOV ACC, -999
L: MOV DOWN, ACC
MOV ACC, UP
MOV DOWN, ACC
MOV DOWN, ACC
JMP L
@4
MOV ACC, UP
SUB UP
JG P
MOV ACC, 0
P: ADD UP
MOV RIGHT, ACC
@5
MOV ACC, -999
L: MOV DOWN, ACC
MOV ACC, LEFT
MOV DOWN, ACC
MOV DOWN, ACC
JMP L
@8
MOV ACC, UP
SUB UP
JG P
MOV ACC, 0
P: ADD UP
MOV LEFT, ACC
@7
MOV DOWN, RIGHT
