SCOPE Solution

ECHO SHADOW

SCOPE ACT 3

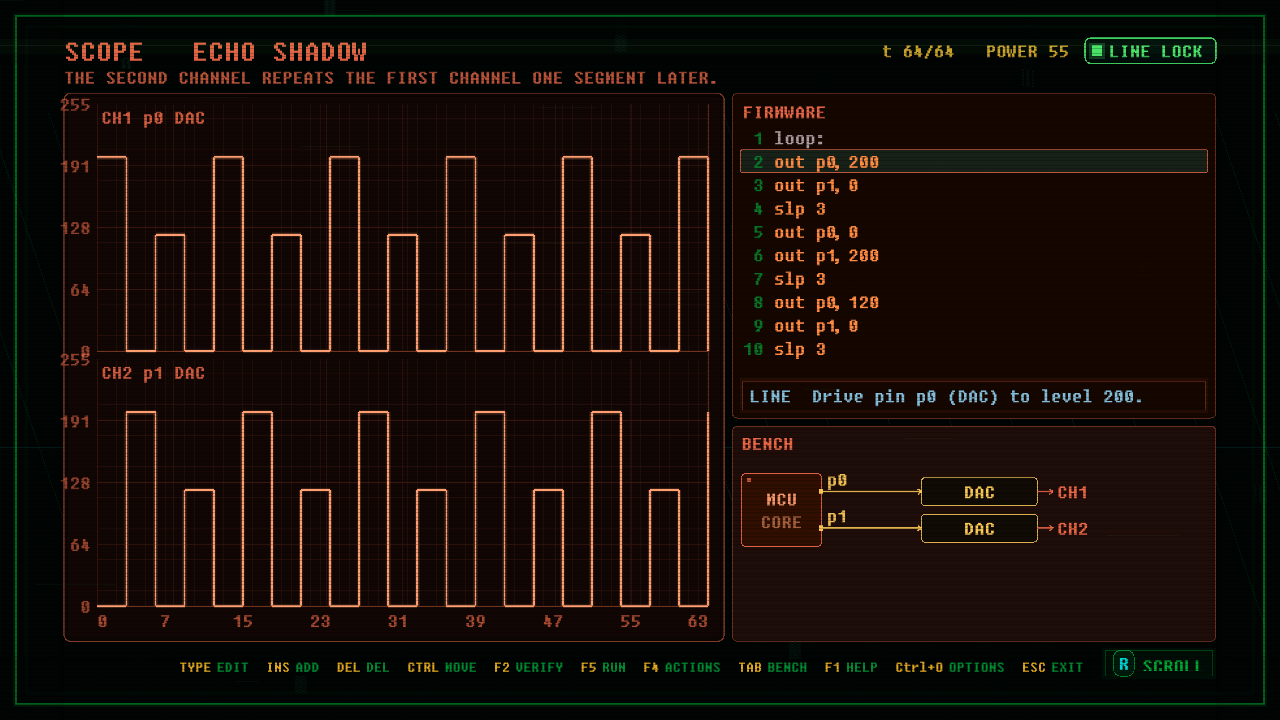

In-game screenshot of ECHO SHADOW
In-game view
FamilySCOPE Graph0.425 Difficulty0.425 Ring03 IDsc_a3_04_echo_shadow

Prerequisites

CROSSBAR

Unlocks

MIRROR BITS

Reference firmware sc_a3_04_echo_shadow locked
Par power55 Par lines14 Par chips2

Objective

The second channel repeats the first channel one segment later.

Board Data

  • Window: 64
  • Pins: p0 OUT, p1 OUT
  • Channels: p0 ANALOG label=CH1_p0_DAC, p1 ANALOG label=CH2_p1_DAC
  • Peripherals: DAC data=p0 label=DAC_p0, DAC data=p1 label=DAC_p1
Firmware Solution
loop:
      out  p0, 200
      out  p1, 0
      slp  3
      out  p0, 0
      out  p1, 200
      slp  3
      out  p0, 120
      out  p1, 0
      slp  3
      out  p0, 0
      out  p1, 120
      slp  3
      jmp  loop
Board Definition
# ECHO SHADOW. ACT 3. SCOPE waveform board.
# TITLE ECHO SHADOW
# OBJECTIVE The second channel repeats the first channel one segment later.
ID sc_a3_04_echo_shadow
WINDOW 64
DIR p0 OUT
DIR p1 OUT
PERIPH DAC data=p0 label=DAC_p0
PERIPH DAC data=p1 label=DAC_p1
CHAN p0 ANALOG label=CH1_p0_DAC
CHAN p1 ANALOG label=CH2_p1_DAC
PAR power=55 lines=14 chips=2
