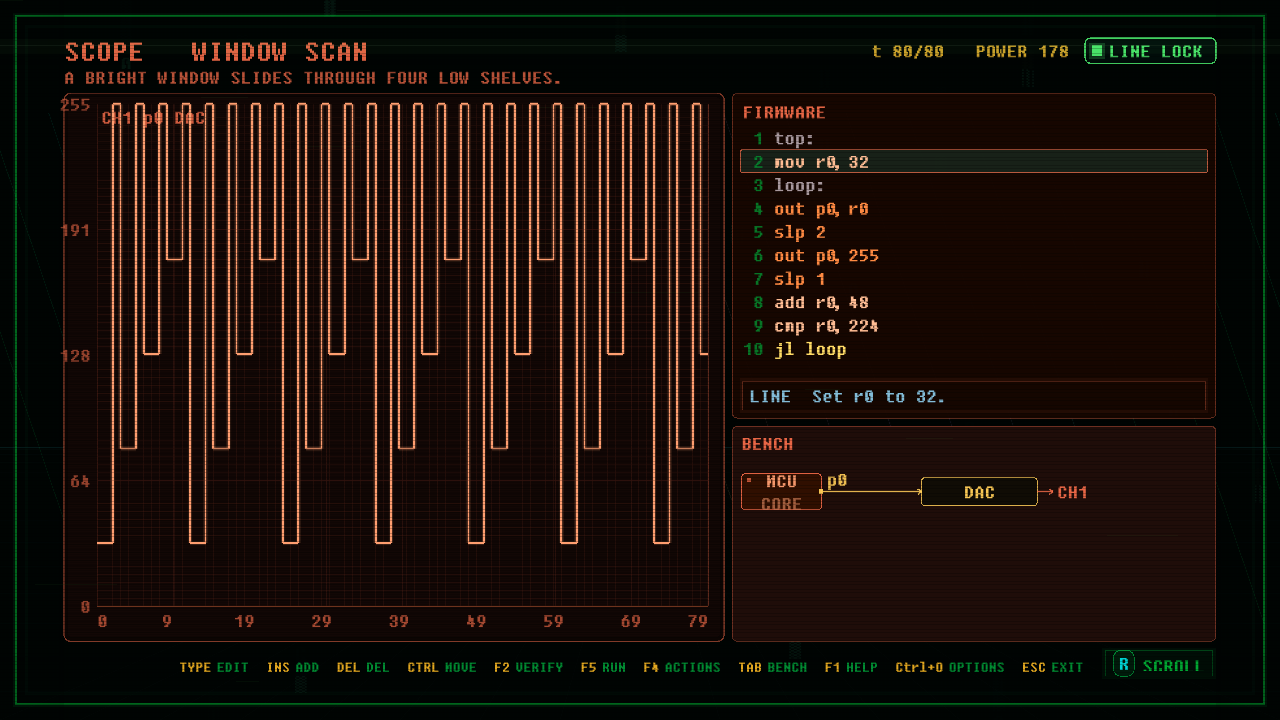

In-game screenshot of WINDOW SCAN
In-game view
FamilySCOPE Graph0.751 Difficulty0.751 Ring05 IDsc_a5_02_window_scan

Prerequisites

BINARY MIRROR

Unlocks

DIVIDER

Reference firmware sc_a5_02_window_scan locked
Par power178 Par lines11 Par chips1

Objective

A bright window slides through four low shelves.

Board Data

  • Window: 80
  • Pins: p0 OUT
  • Channels: p0 ANALOG label=CH1_p0_DAC
  • Peripherals: DAC data=p0 label=DAC_p0
Firmware Solution
top:
      mov  r0, 32
loop:
      out  p0, r0
      slp  2
      out  p0, 255
      slp  1
      add  r0, 48
      cmp  r0, 224
      jl   loop
      jmp  top
Board Definition
# WINDOW SCAN. ACT 5. SCOPE waveform board.
# TITLE WINDOW SCAN
# OBJECTIVE A bright window slides through four low shelves.
ID sc_a5_02_window_scan
WINDOW 80
DIR p0 OUT
PERIPH DAC data=p0 label=DAC_p0
CHAN p0 ANALOG label=CH1_p0_DAC
PAR power=178 lines=11 chips=1
